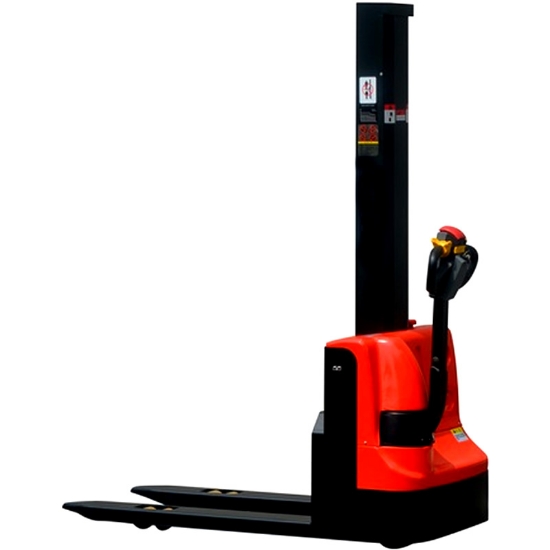

Electric Straddle Stacker 1000kg 1600mm Lift


Part No: EW-CL-1016

This electric economy stacker offers an attractive appearance, convenient operation and features. With a lifting capacity of 1000kg. The side-driven design effectively reduces the size of the operation channel. With a small turning radius and better view, this stacker is suitable for narrow spaces. Thought it is economical power stacker, it is still equipped with high-power and high- performance lifting pump station, which ensures the goods lifting.
*
$4,330.00 excl GST

Electric Straddle Stacker 1000kg 1600mm Lift

This electric economy stacker offers an attractive appearance, convenient operation and features. With a lifting capacity of 1000kg.

Description:

  • The side-driven design effectively reduces the size of the operation channel. With a small turning radius and better view, this stacker is suitable for narrow spaces.
  • Thought it is economical power stacker, it is still equipped with high-power and high- performance lifting pump station, which ensures the goods lifting.
  • The turtle speed switch on the handle makes low-speed control more precise.
  • Germany imported waterproof micro-switches are applied in the cold, damp, dusty and other harsh environments.
  • YONGCI motor drive system is with small size, light weight, low loss and high efficiency.

Specification:

  • Capacity: 1000 kg
  • Load Capacity on Max Height: 800kg
  • Lifting height: 1600 mm
  • Turning Radius: 1316 mm
  • Load Center Distance: 600 mm
  • Fork Length: 1150 mm
  • Fork Outside Width: 570 / 695 mm
  • Single Fork Width: 160 mm
  • Min Fork Height: 86 mm
  • Support Leg Length: 928 mm
  • Support Leg Height: 75 mm
  • Single Support Leg Width: 124 mm
  • Support Leg Inside Width: 410 mm
  • Support Leg Outside Width: 660 mm
  • Overall Length: 1632 mm
  • Overall Width: 795 mm
  • Lifting Motor: 2.2 kw
  • Unit Weight: 410 kg
