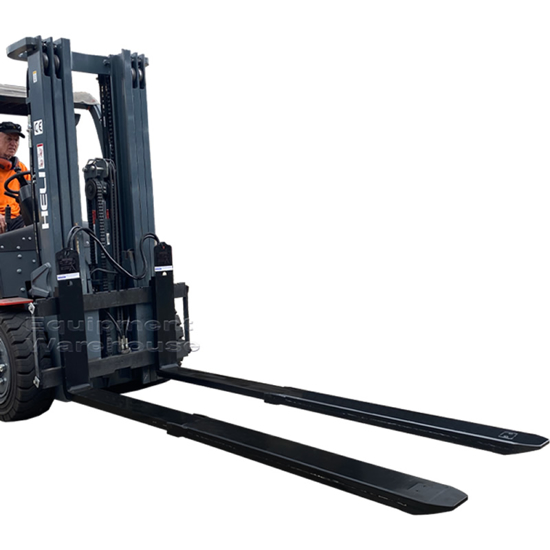

Extendable Forklift Tynes Class 2 1350mm/1000mm (Dual Cylinder)

Part No: EW-EFT-C2-425-1350-1000

Extendable Hydraulic Forklift Tynes hydraulically extend 1350mm - 2350mm and retract for double deep stacking and one-sided loading/unloading of truck without repositioning your forklift.
$6,170.00 excl GST

Extendable Forklift Tynes Class 2 1350mm/1000mm (Dual Cylinder)

Extendable Hydraulic Forklift Tyne hydraulically extend and retract for double deep stacking and one-sided loading/unloading. These forks help reduce loading times, increase warehouse storage capacity and vastly improve safety.  One-sided loading/unloading eliminates the need to turn the vehicle or drive forklift to the opposite side making the operation safer. Double deep stacking can increase warehouse capacity by up to 30% compared to single deep warehouse operation.

  • Allows double deep stacking, increasing warehouse capacity
  • Allows one-sided loading and unloading, saving time and increasing driver safety
  • Phasing cylinders keep fork motion in sync
  • Reinforced heel gives less deflection
  • Easy connection of the forks onto the fork carrier
  • Dual cylinder models provides greater push/pull power, ideal for performing under demanding circumstances
  • Requires one additional hydraulic function
  • Local technical support and spare parts
  • Optional Pallet Stops prevent forks from protruding through to the rear pallet
  • Class : 2
  • WLL at 600mm LC (kg) : 2500
  • Cylinders per fork : Dual
  • Length (mm) : 1350
  • Extension (mm) : 1000
  • Section w x h (mm) : 162 x 57
  • Lost Load (mm) : 45
  • Weight per pair (kg) : 212
