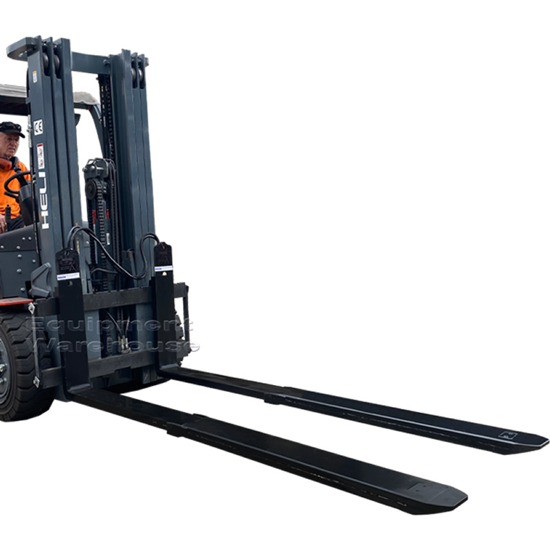

Extendable Forklift Tynes Class 3 1200mm/850mm (Dual Cylinder)


Part No: EW-EFT-C3-435-1200-850

Extendable Hydraulic Forklift Tynes hydraulically extend 1200mm - 2050mm and retract for double deep stacking and one-sided loading/unloading of truck without repositioning your forklift.
*
$5,790.00 excl GST
Extendable Forklift Tynes Class 3 1200mm/850mm (Dual Cylinder)

Extendable Hydraulic Forklift Tyne hydraulically extend and retract for double deep stacking and one-sided loading/unloading. These forks help reduce loading times, increase warehouse storage capacity and vastly improve safety.  One-sided loading/unloading eliminates the need to turn the vehicle or drive forklift to the opposite side making the operation safer. Double deep stacking can increase warehouse capacity by up to 30% compared to single deep warehouse operation.
  • Description:
    • Allows double deep stacking, increasing warehouse capacity
    • Allows one-sided loading and unloading, saving time and increasing driver safety
    • Phasing cylinders keep fork motion in sync
    • Reinforced heel gives less deflection
    • Easy connection of the forks onto the fork carrier
    • Dual cylinder models provides greater push/pull power, ideal for performing under demanding circumstances
    • Requires one additional hydraulic function
    • Local technical support and spare parts
    • Optional Pallet Stops prevent forks from protruding through to the rear pallet


    Specifications:
    • Class : 3
    • WLL at 600mm LC (kg) : 3500
    • Cylinders per fork : Dual
    • Length (mm) : 1200
    • Extension (mm) : 850
    • Section w x h (mm) : 162 x 57
    • Lost Load (mm) : 45
    • Weight per pair (kg) : 205
