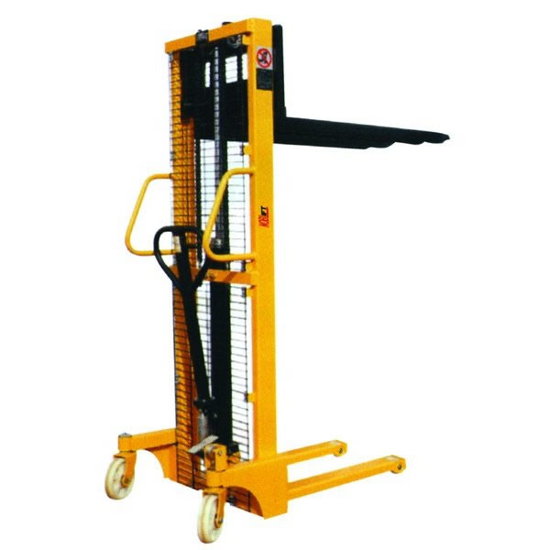

Manual Stacker Narrow 1000kg


Part No: EW-NS-1000J

These manual fork stackers are heavy-duty construction. Straddle leg used for closed pallet. Walk-behind manual push to moving around. Manual hydraulic lift via pallet truck style handle or foot pedal. The updated version of manual stacker enables the forks adjustable wider. The new adjustable fork width range now is from 320mm-1000mm.
*
$1,470.00 excl GST

Manual Stacker Narrow 1000kg

These manual fork stackers are heavy-duty construction. Straddle leg used for closed pallet Walk-behind manual push to moving around. Manual hydraulic lift via pallet truck style handle or foot pedal. The updated version of manual stacker enables the forks adjustable wider. The new adjustable fork width range now is from 320mm-1000mm.

Specification:

  • Capacity: 1000kg
  • Lift height: 1600mm
  • Fork length: 1150mm
  • Adjustable fork width: 320-740mm
  • Fixed leg length: 900mm
  • Overall Length: 1650mm
  • Overall width: 770mm
  • Overall height: 2020mm
  • Min fork height: 80mm
  • Single fork width: 150mm
  • Pump times to the max height: 111 times
