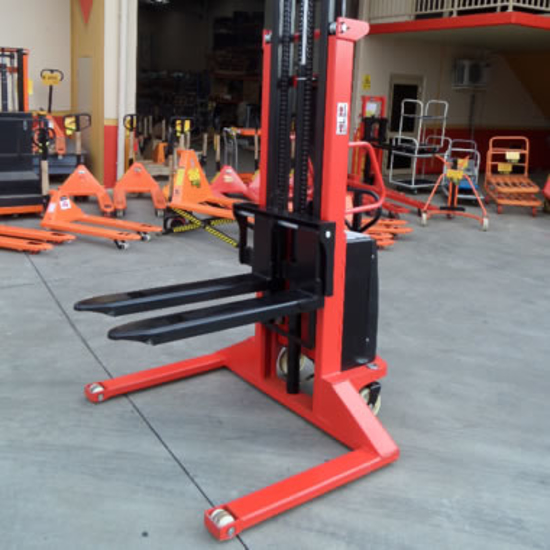

Semi-Electric Pallet Straddle Stacker 1500kg/3m


Part No: EW-PS15SN

This semi electric straddle stacker is Suitable for lifting Standard and narrow pallets, skids, safes, equipment, boxes, machinery, etc. It has Extra heavy duty steel frame, Chain and Ram.
*
$5,290.00 excl GST

Semi-Electric Pallet Straddle Stacker 1500kg/3m

This semi electric straddle stacker is Suitable for lifting Standard and narrow pallets, skids, safes, equipment, boxes, machinery, etc. It has Extra heavy duty steel frame, Chain and Ram.

Description:

  • Capacity: 1500kg, Lift height: 3000mm
  • Electric lift and drop, manual push, pull,
  • Extra heavy duty steel frame, Chain and Ram
  • Suitable for all heavy and light loads
  • Suitable for lifting Standard and narrow pallets, skids, safes, equipment, boxes, machinery, etc
  • Economic and mobile work aid – can be used as a pallet jack as well
  • Built in charger, just plug into power point
  • Emergency stop switch

Specification:

  • Turning radius 2800mm
  • Single fork length 1000mm, width 150mm, thickness 65mm
  • Min-Max Fork Height: 90mm-3000mm
  • Adjustable forks width: 360mm - 690mm (Outer forks tips)
  • Clearance between forks: 0 - 1100mm
  • Clearance between legs: 1220mm, Overall legs width: 1460mm
  • Overall dimensions - 173(L) x 146(W) x 208(H) cm - weight 424kg
  • Shipping dimensions - Pallet - 173(L) x 146(W) x 222(H) cm - weight 454kg
